1. Industrial alumina ceramic furnace tubes tubes, typically made from high-purity alumina (Al2O3), exhibit exceptional thermal stability, corrosion resistance, and mechanical strength, making them ideal for use in harsh operating environments. 2. One of the key advantages of industrial alumina ceramic furnace tubes is their ability to withstand extremely high temperatures without undergoing significant deformation or degradation. This characteristic makes them indispensable for processes that involve the production or treatment of materials at elevated temperatures, including sintering, calcination, annealing, and thermal decomposition. 3. Moreover, the exceptional chemical inertness of alumina ceramics ensures compatibility with a wide range of substances, including acids, alkalis, molten metals, and gases. This resistance to chemical attack minimizes contamination and ensures the purity of the processed materials, making alumina furnace tubes particularly well-suited for applications that demand strict quality control and product integrity.

 Industrial Alumina Ceramic High Temperature Furnace Tube/Pipe





Advantages of Industrial Alumina Ceramic Furnace Tube/Pipe

1. Industrial alumina ceramic furnace tubes tubes, typically made from high-purity alumina (Al2O3), exhibit exceptional thermal stability, corrosion resistance, and mechanical strength, making them ideal for use in harsh operating environments.


2. One of the key advantages of industrial alumina ceramic furnace tubes is their ability to withstand extremely high temperatures without undergoing significant deformation or degradation. This characteristic makes them indispensable for processes that involve the production or treatment of materials at elevated temperatures, including sintering, calcination, annealing, and thermal decomposition.


3. Moreover, the exceptional chemical inertness of alumina ceramics ensures compatibility with a wide range of substances, including acids, alkalis, molten metals, and gases. This resistance to chemical attack minimizes contamination and ensures the purity of the processed materials, making alumina ceramic furnace tubes particularly well-suited for applications that demand strict quality control and product integrity.


4. In addition to their thermal and chemical properties, industrial alumina ceramic furnace tubes exhibit remarkable mechanical strength and abrasion resistance, enabling prolonged service life even in demanding operational conditions. Their inherent toughness and durability contribute to cost savings by reducing maintenance downtime and replacement frequency.


5. Furthermore, alumina ceramic furnace tubes offer excellent thermal insulation properties, facilitating precise temperature control and energy efficiency in heating processes. Their low thermal conductivity helps to minimize heat loss and optimize thermal uniformity within the furnace chamber, ensuring consistent and reliable performance.


6. The versatility and reliability of industrial alumina ceramic furnace tubes make them indispensable components in a wide range of industrial applications. From high-temperature heat treatment processes to thermal analysis and materials synthesis, these tubes provide essential support for achieving optimal results and maximizing productivity in diverse manufacturing and research environments.



Applications of Industrial Alumina Ceramic Furnace Tube/Pipe


Industrial alumina ceramic furnace tubes have a wide range of applications in the industrial field, mainly including the following aspects:

1. High temperature furnace tube application: Industrial alumina ceramic furnace tubes have excellent high-temperature resistance and can usually withstand high temperatures of thousands of degrees Celsius. Therefore, they are widely used in various high-temperature heating equipment, such as high-temperature sintering furnaces, high-temperature melting furnaces, heat treatment furnaces, etc.


2. Chemical industry: In the chemical industry, alumina ceramic furnace tubes are commonly used in various chemical reaction vessels, distillation towers, drying equipment, etc. Due to their good corrosion resistance and ability to withstand the erosion of corrosive substances such as acid and alkali.


3. Semiconductor manufacturing: In the manufacturing process of the semiconductor industry, high-temperature equipment is often used for wafer heat treatment, annealing and other processes. Alumina ceramic furnace tubes can provide a stable high-temperature environment to ensure the smooth progress of the manufacturing process.


4. Glass industry: In the process of glass production, it is necessary to melt the raw materials. Alumina ceramic furnace tubes can provide a stable high-temperature melting environment, which helps to improve the efficiency and quality of glass production.


5. Photovoltaic industry: In the production of photovoltaic cells, high-temperature equipment is required for multiple sintering, annealing and other processes. Alumina ceramic furnace tubes can provide the required high-temperature environment to ensure the manufacturing quality of the cells.


Alumina Ceramic



Alumina Tube(open both ends)(slip casting)  Specification Table:

Number

 SPEC: OD x IDLENG TH MMNumberSPEC: OD x IDLENG TH MM
INCHMM INCHMM
10.197x0.1185x3≤800321.126x0.88628.6x22.5≤1800
20.236x0.1576x4≤1300331.181x0.82730x21
30.250x0.1256.4x3.2341.181x0.90630x23
40.250x0.1576.4x4351.260x0.98432x25
50.250x0.1886.4x4.8361.375x1.12534.9x28.6
60.276x0.1577x4371.378x1.06335x27
70.276x0.1977x5381.496x1.18138x30
80.315x0.1978x5391.575x1.18140x30
90.354x0.2369x6≤1600401.654x1.33942x34
100.375x0.2509.6x6.4411.750x1.50044.5x38.1
110.394x0.23610x6421.811x1.49646x38
120.394x0.27610x7431.875x1.62547.6x41.3
130.433x0.27611x7441.969x1.57550x40
140.472x0.23612x6452.000x1.75050.8x44.5
150.472x0.31512x8462.250x2.00057.2x50.8
160.472x0.35512x9472.283x1.89058x48
170.500x0.25012.7x6.4482.362x1.9660x50
180.500x0.37512.7x9.5492.500x2.25063.5x57.2
190.551x0.39414x10502.559x2.16565x55
200.591x0.39415x10≤1800512.750x2.50069.9x63.5
210.630x0.47216x12522.756x2.36270x60
220.669x0.47217x12532.956x2.56175x65
230.688x0.43717.5x11.1543.000x2.75076x70
240.750x0.51219.1x13553.150x2.67580x68
250.787x0.59120x15563.500x3.12588.9x79.4≤1600
260.866x0.63022x16573.543x3.15090x80
270.866x0.66922x17583.937x3.543100x90
280.945x0.70924x18594.000x3.650101.6x93
291.000x0.75025.4x19.1604.331x3.937110x100≤1500
301.063x0.66927x17614.500x4.125114.3x105
311.063x0.78727x20624.724x4.331120x110


 Insulation tube (extrusion)  Specification Table

            Number               1 Bore tube SPEC: OD x ID         Length MM
                    INCH               MM
1
0.031x0.0110.8x0.3










≤18500

20.039x0.0191x0.5
30.059x0.0241.5x0.6
4
0.079x0.039
2x1
5
0.100x0.0502.5x1.3
60.118x0.0593x1.5
70.118x0.0793x2
80.125x0.0633.2x1.6
90.157x0.0794x2
10
0.197x0.1185x3
110.236x0.1186x3
120.236x0.1576x4
13
0.250x0.1256.4x3.2
140.250x0.1576.4x4
150.250x0.1886.4x4.8
160.276x0.1977x5
17
0.315x0.1978x5
180.354x0.2369x6
19
0.374x0.2509.5x6.35
200.394x0.23610x6
21
0.433x0.27611x7
220.472x0.31512x8


Composition table

NAMECONTENT(%)
Al2O399.3-99.5(99.7)
SiO20.3-0.5
CaO+MgO0.2-0.3
K2O+Na2O0.2-0.35
Fe2O3<0.1
OTHER<0.05


Alumina ceramic performance index   (Notice of Correct in Leakeage Rate)

NO.

Property

Unit

Alumina

1

Al2O3

%

>99.3

2

SiO2

%

-

3

Density

g/cm3

3.88

4

Water absorption

%

0.01

5

Cold compressive strength

MPa

350

6

20ºC leakage rates

TorrL/sec

>10-11=1.33322×10-12Pam3/sec

7

Twisting in high temperature

mm

0.2 allowed in 1600ºC

8

Bonding in high temperature


not bonded in 1600ºC

9

20-1000ºC coefficient ofthermalexpansion

mm.10-6/ºC.m

8.2

10

Thermal conductivity

W/m.k

25

11

Electric insulation strength

KV/mm

20

12

20ºCdirect current

insulation resistance

Ohm/cm

1014

13

High-temperature

insulation resistance

1000ºC MΩ

≥0.08

1300ºC MΩ

≥0.02

14

Thermal shock resistance


4 times not cracked in 1550ºC

15

Maximum working temperature

ºC

1800



Our factory

Jinzhou Yunxing Industrial Ceramics Co., Ltd. was established in 2000, mainly producing various types of tubular ceramic products and various industrial parts with alumina content above 99.3%. The factory covers an area of 4000 square meters.

The company's main products are: alumina ceramic tubes, alumina ceramic crucibles, alumina ceramic rods, alumina ceramic boats, alumina ceramic plates, alumina ceramic parts, etc.

The company currently has 3 1800 ° C high-temperature furnaces and 2 1400 ° C low-temperature kilns independently designed and manufactured. The molding process is mainly based on grouting molding, and has other molding process equipment such as extrusion and hot die casting.
The company has 105 employees, including one senior ceramic engineer, three engineers, six overseas sales staff, and four professional after-sales staff.

Alumina Ceramic Furnace Tubes


FAQ

Q1. Can alumina ceramic furnace tubes be reused after use?

Yes, alumina ceramic furnace tubes can be reused after use, provided they are undamaged and free from contamination. Proper cleaning and inspection are necessary to ensure their suitability for subsequent applications.


Q2. Are alumina ceramic furnace tubes suitable for high-pressure applications?

Yes, alumina ceramic furnace tubes can be used in high-pressure applications. Their excellent mechanical strength and resistance to thermal and chemical stresses make them suitable for demanding conditions.


Q3. Can alumina ceramic furnace tubes withstand rapid temperature changes?

A1. Alumina ceramic furnace tubes exhibit good thermal shock resistance, allowing them to withstand rapid temperature changes without cracking or breaking. However, it's essential to choose a tube with suitable thermal shock resistance for specific application requirements.


Q4. Can alumina ceramic furnace tubes be custom-designed for specific applications?

A2. Yes, many suppliers offer customization options for alumina ceramic furnace tubes. Customization can include adjustments to size, shape, and additional features to meet the specific needs of your application.


Q5. How long do alumina ceramic furnace tubes typically last?

A3. The lifespan of alumina ceramic furnace tubes can vary depending on factors such as application conditions, operating temperatures, and maintenance practices. With proper care and usage, these tubes can last several years, providing reliable performance.


Q6. What is the maximum temperature for alumina tube?

A4. Alumina products can withstand up to 1750°C (3182°F).


Q7. What is the difference between ceramic and alumina?

A5. Ceramics are non-metallic, inorganic materials that are typically composed of a combination of metallic and non-metallic elements. Alumina is a type of ceramic oxide, specifically an oxide of aluminum. It is widely used in various applications due to its excellent mechanical, thermal, and electrical properties.


Furnace Tubes

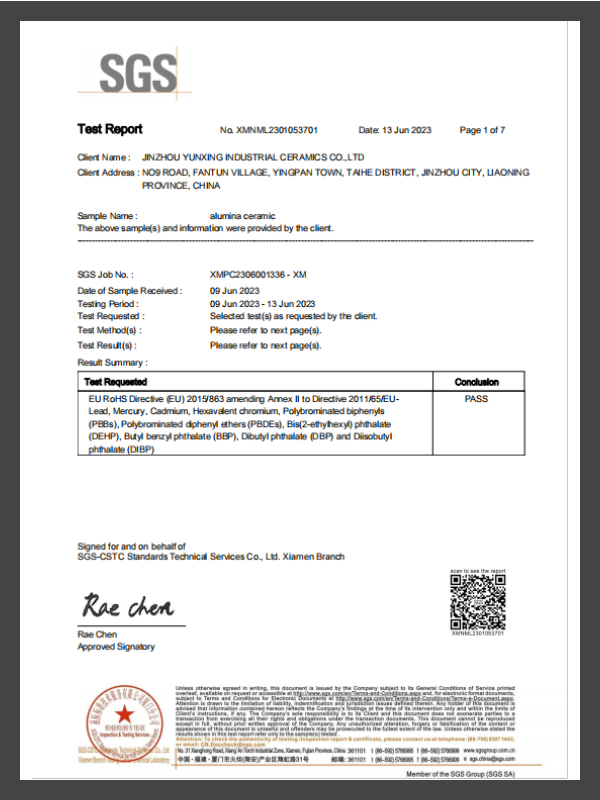

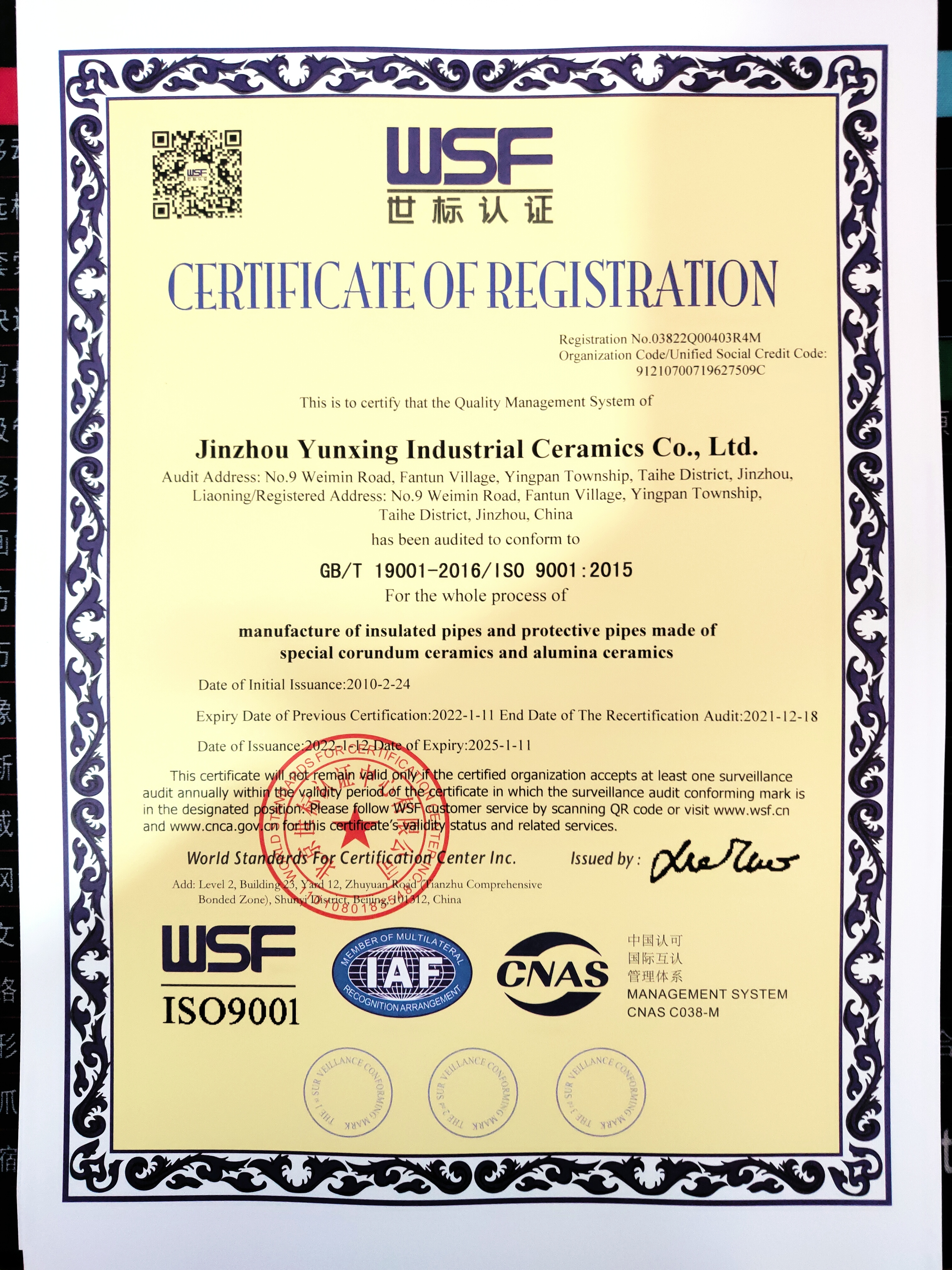

Certificates
