High Temperature Ceramic Crucible

Brand: Yunxing
Product origin: China
Delivery time: Depending on product size and quantity
Supply capacity: 5,000-10,000/month(Looking for distributors)

1. Alumina ceramic crucible , also known as corundum crucible. Contains over 99% AL2O3. 2. The shape mainly cylindrical, conical, square, etc 3. Have good resistance to rapid heating and cooling, and are not easy to explode. 4. Accept customized sizes. 5. Large stock and fast delivery.

Email Annex

High Temperature Ceramic Crucible

Ceramic Crucible

Advantages of Using High-temperature Ceramic Crucibles

1. High-temperature resistance

High-temperature ceramic crucibles generally can withstand temperatures exceeding 1200°C. Among them, the alumina ceramic crucible can withstand a temperature of 1800°C for a short period, and the zirconia ceramic crucible can withstand a temperature as high as 2400°C.

2. Chemical stability

It has strong corrosion resistance to acids, alkalis and molten metals. For example, the alumina ceramic crucible can resist corrosive substances such as fluorides, while the zirconia ceramic crucible hardly reacts with any samples.

3. Mechanical strength and durability

The hardness of the alumina ceramic crucible is close to that of quartz, and its wear resistance is 266 times that of manganese steel. The silicon nitride ceramic crucible has both high hardness and thermal shock resistance.

Application of High Temperature Ceramic Crucible

Alumina ceramic crucibles have become a common choice in fields such as metallurgy and chemical industry due to their cost-effectiveness, resistance to acid and alkali corrosion, and wide applicability. On the other hand, ceramics such as zirconia and silicon nitride are irreplaceable in ultra-high temperature or extremely corrosive environments. One can simply make a choice according to the specific temperature, medium type, and cost requirements.

Size,Performance index

	Alumina crucible (cone)
	Item NO.	SPEC: TOD x BOD x ID x H	Volume (ml)	Shape	Note
1	066#	34/20 x 29 x 40	20	cone
2	229#	40/24 x 36 x 38	25	cone
3	077A#	60/40 x 56 x 70	130	cone
4	204#	68/34 x 61.6 x 56.5	125	cone
5	232#	78/46 x 74 x 90	300	cone
6	211#	100/77 x 94 x 80	400	cone
7	072#	90/70 x 82 x 130	600	cone
8	233#	95/85 x 85 x 110	500	cone
9	077B#	120/77 x 108 x 160	1400	cone
10	263#	40/22 x 36 x 48	40	cone
11	340#	56/30 x 50 x 45	52	cone
12	400#	50/30 x 46 x 50	65	cone
13	271#	34/28.5 x 23.5x 33/8	15	cone
14	441#	45/30 x 80	70	cone
15	445#	22.479 x 14.859 x Th2.36	2	cone
16	446#	24.003 x 11.557 x Th2.413	1.8	cone
17	499#	85/45 x 79 x 70	230	cone
18	516#	28.6 x 12.7 x Th2.36	5	cone
19	567#	41.48 x 23.37 x Th2.39	15	cone
20	615#	37.59 x 17.02 x Th2.49	10	cone
21	619#	46.99 x 17.27 x Th2.36	15	cone
22	650#	29/7 x 14 x 30/1	1.5	cone
23	667#	29/18 x 34	10	cone
24	668#	58/35 x 68	100	cone
25	669#	79/42 x 93	250	cone
26	676#	110/75 x 80 x Th3	515	cone
27	667B#	29/19 x 34	10	cone
28	668B#	58/35 x 68	100	cone
29	669B#	79/42 x93	250	cone
30	676B#	110/75 x 80 x Th3	15	cone
31	741#	46.6/25.5 x 41.3 x 52	50	cone
32	754#	50/41 x 50 x Th8	20	cone
33	755#	170 x 40 x Th8	470	cone
34	795#	126/110 x 116 x 130	1075	cone
35	874#	77.2/37.06 x 71 x 96	270	cone
36	934#	83/48 x 108 x Th3-4	330	Arc-shaped
37	935#	83/48 x 108 x Th3-4	570	Arc-shaped
38	211B#	100/77 x 80 x Th3-4	400	Arc-shaped
39	567B#	41.48/28.95 x 23.88 x Th2.38	15	cone
40	969#	65/33 x 60 x 55 x Th2-2.5	105	Arc-shaped
41	972#	70/45 x 85 x Th3	200	Arc-shaped
42	977#	25/15 x 30 x Th1-1.5	10	Arc-shaped
43	987#	125 x 210 x Th7-10	1300	cone
44	A30#	18/14 x 15 x 22/3.5	1.8	cone
45	A45#	124 x 161	1500	Arc-shaped
46	A48#	42/34 x 22 x Th2.8	1350	cone
47	A99#	45/34 x 75° x 28.7	17	cone
48	B14#	35/25 x 29 x Th2	10	cone
49	447#	29.464 x 14.732 x Th2.3622		cone
50	452#	42.5 x 19.5 x Th2.4		cone
51	562#	10 x 8 x 35
52	615B#	37.59/15° x 17.02 x Th2.49		cone
53	B100#	38/27 x 47 x Th2-2.5		cone
54	C21#	23.88/21.84 x 12.7 x Th2.03		cone
55	C24#	81/40 x 72 x 120		Arc-shaped
56	C48#	36/26 x 42		Arc-shaped
57	C59#	48/30 x 52		Arc-shaped
58	C85#	48/32 x 54		Arc-shaped
59	C90#	34.57/17.78 x 142.47/2.49 x Th2.49		cone
60	C91#	15.75/11.18 x 80.52/2.54 x Th1.27		cone
61	D24#	34/15° x 19.5 x Th2.4		cone
62	D61#	22/20 x 18.5/17.5 x 20		cone

Alumina crucible (cylindrical)
	Item NO.	SPEC: OD x OD x H(mm)	Volume (ml)	Shape	Note
1	054#	9.4 x 8 x 15	0.7	cylinder
2	051#	14 x 9 x 50	3	cylinder
3	073#	25 x 20 x 25	7	cylinder
4	055#	36 x 25 x 59	26	cylinder
5	062#	35 x 30 x 132	90	cylinder
6	152#	50 x 46 x 60	90	cylinder
7	074#	60 x 55 x 60	130	cylinder
8	063#	40 x 35 x 154	140	cylinder
9	234#	110 x 102 x 140	1000	cylinder
10	235#	115 x 105 x 145	1200	cylinder
11	150#	115 x 98 x 181	1280	cylinder
12	236#	120 x 110 x 140	1280	cylinder
13	237#	125 x 115 x 145	1400	cylinder
14	225#	127 x 121 x 228	2500	cylinder
15	215#	171.5 x 158.8 x 152.4	3000	cylinder
16	293#	24 x 20 x 23	7	cylinder
17	294#	31 x 29 x 41	22	cylinder
18	301#	56 x 51 x 60	117	cylinder
19	306#	20 x 14-16 x 40	6.5	cylinder
20	307#	16 x 10-12 x 30	2.5	cylinder
21	308#	18 x 12-14 x 30	3.5	cylinder
22	309#	30 x 24-26 x 30	13	cylinder
23	352#	45 x 40 x 110	135	cylinder
24	353#	50 x 45 x 140	215	cylinder
25	380A#	12 x 8 x 51	2.5	cylinder
26	383#	215 x 189 x 175	4900	cylinder
27	384#	45 x 41 x 62	75	cylinder
28	063#	40 x 35 x 70	65	cylinder
29		41 x 35 x 41	40	cylinder
30	392#	70 x 60 x 12	20	cylinder
31	395#	62 x 58 x 74	165	cylinder
32	240#	138 x 128 x 106	1300	cylinder
33	478#	176 x 170 x 43	900	cylinder
34	506#	160 x 280 x Th5-5.7	4500	cylinder
35	486#	40 x 95	80	cylinder
36	520#	13 x 10 x 35	2.5	cylinder
37	527#	9.5 x 6 x 30	1	cylinder
38	532#	13 x 11 x 75	6	cylinder
39	544#	44 x 40 x 72	80	cylinder
40	552#	13 x 10.46 x 25	2	cylinder
41	559#	284 x 275 x 101.6	6000	cylinder
42	560#	186.94 x 177.8 x 152.4	3700	cylinder
43	561#	155 x 200 x Th8	3000	cylinder
44	568#	12x 25.4	0.8	cylinder
45	573#	36.5 x 34.5 x 69.85	40	cylinder
46	594#	65 x 83 x Th3.5	190	cylinder
47	593#	47 x 53 x Th3	55	cylinder
48	611#	48 x 41 x 90	120	cylinder
49	612#	5.89 x 4.89 x 12.8	0.2	cylinder
50	625#	18 x 15 x 60	6	cylinder
51	627#	12 x 9 x 50	2	cylinder
52	629#	24 x 21 x 20	5	cylinder
53	631#	19 x 17 x 26	3.8	cylinder
54	637#	90 x 90	430	cylinder
55	638#	80 x 80	280	cylinder
56	639#	100 x 80	460	cylinder
57	648#	16 x 40	3	cylinder
58	670#	22 x 33	10	cylinder
59	671#	45 x 38	50	cylinder
60	672#	72 x 148	500	cylinder
61	696#	38 x 34 x 7	5	cylinder
62	699#	85 x 60 x Th2-3	255	cylinder
63	701#	23.3 x 102	30	cylinder
64	708#	200 x 187.5 x 254	6100	cylinder
65	712#	24 x 20.8 x 50.8	20	cylinder
66	715#	42.5/38 x 35 x 50/1.5	50	cylinder
67	717#	150 x 215	3200	cylinder
68	719#	28 x 23 x 24	10	cylinder
69	726#	90 x 120 xTh3-4	570	cylinder
70	745#	6.5 x 5 x 12	0.2	cylinder
71	753#	160 x 140 x 140	1465	cylinder
72	770#	13 x 10 x 17	2	cylinder
73	771#	80 x 74 x 50	185	cylinder
74	772#	20 x 16 x 30	5	cylinder
75	774#	84 x 78 x 40	190	cylinder
76	778#	50 x 280 xTh3.25	420	cylinder
77	782#	152.4 x 142 x 279.4	4350	cylinder
78	783#	28 x 40	15	cylinder
79		35 x 28.5 x 50	30	cylinder
80	307B#	16 x 12 x 25	2.5	cylinder
81	807#	72 x 60 x 80	215	cylinder
82	813#	105 x 255	1515	cylinder
83	817#	6 x 4 x 6	0.13	cylinder
84	818#	7 x 5 x 8	0.2	cylinder
85	823#	22 x 18 x 85	25	cylinder
86	858#	72 x 55 x 200	450	cylinder
87	860#	24 x 20 x 30	5	cylinder
88	870#	74 x 70 x 16	50	cylinder
89	873#	8 x 5 x 25.5	0.5	cylinder
90	892#	134.62 x 124 x 117.6	1150	cylinder
91	895#	68 x 64 x 13	50	cylinder
92	896#	51 x 47 x 20	30	cylinder
93	905#	120 x 113 x 143	1240	cylinder
94	922#	3.95 x 2.95 x 15	0.1	cylinder
95	928#	43 x 35 x 26	20	cylinder
96	953#	85 x 78 x 143 x Th4	570	cylinder
97	958#	190 x 180 x 124	2870	cylinder
98	996#	88.9 x 78.74 x 157.48	700	cylinder
99	A05#	40 x 40 x Th2.5	36	cylinder
100	A11#	37 x 31 x 85	62	cylinder

Alumina ceramic composition table

NAME	CONTENT(%)
Al2O3	99.3-99.5(99.7)
SiO2	0.3-0.5
CaO+MgO	0.2-0.3
K2O+Na2O	0.2-0.35
Fe2O3	<0.1
OTHER	<0.05

Alumina ceramic performance index (Notice of Correct in Leakeage Rate）

NO.	Property	Unit	Alumina
1	Al2O3	%	>99.3
2	SiO2	%	-
3	Density	g/cm3	3.88
4	Water absorption	%	0.01
5	Cold compressive strength	MPa	350
6	20ºC leakage rates	Torr・L/sec	>10-11=1.33322×10-12Pa・m3/sec
7	Twisting in high temperature	mm	0.2 allowed in 1600ºC
8	Bonding in high temperature		not bonded in 1600ºC
9	20-1000ºC coefficient ofthermalexpansion	mm.10-6/ºC.m	8.2
10	Thermal conductivity	W/m.k	25
11	Electric insulation strength	KV/mm	20
12	20ºCdirect current insulation resistance	Ohm/cm	1014
13	High-temperature insulation resistance	1000ºC MΩ	≥0.08
13	High-temperature insulation resistance	1300ºC MΩ	≥0.02
14	Thermal shock resistance		4 times not cracked in 1550ºC
15	Maximum working temperature	ºC	1800

Factory Equipment

Ceramic Crucible

Slip casting moulding: Inject the prepared slurry into the gypsum mold and let it stand for a period of time to allow the gypsum mold to absorb moisture. The slurry forms a uniform body on the inner wall of the mold.

Injection moulding: Inject a slurry containing paraffin into a metal mold at a certain temperature and pressure, and after the body cools and solidifies, perform demolding to prepare ceramic bodies.

Extrusion moulding: Suitable for long tube products, the powder is extruded into shape through an extruder.

FAQ

Q1. What is the operating temperature for alumina ceramic crucibles?

A1. High purity (such as over 99%) alumina ceramic crucible, suitable for high temperature environments of 1650-1800 ℃.

Q2. How to clean alumina ceramic crucible?

A2. Alumina ceramic crucible after use, wipe with a soft cloth and mild detergent to avoid scratching the inner wall with hard objects.

Q3. How to maintain alumina ceramic crucible?

A3. Check for cracks/damages before use, and immediately stop using and replace if any problems are found.

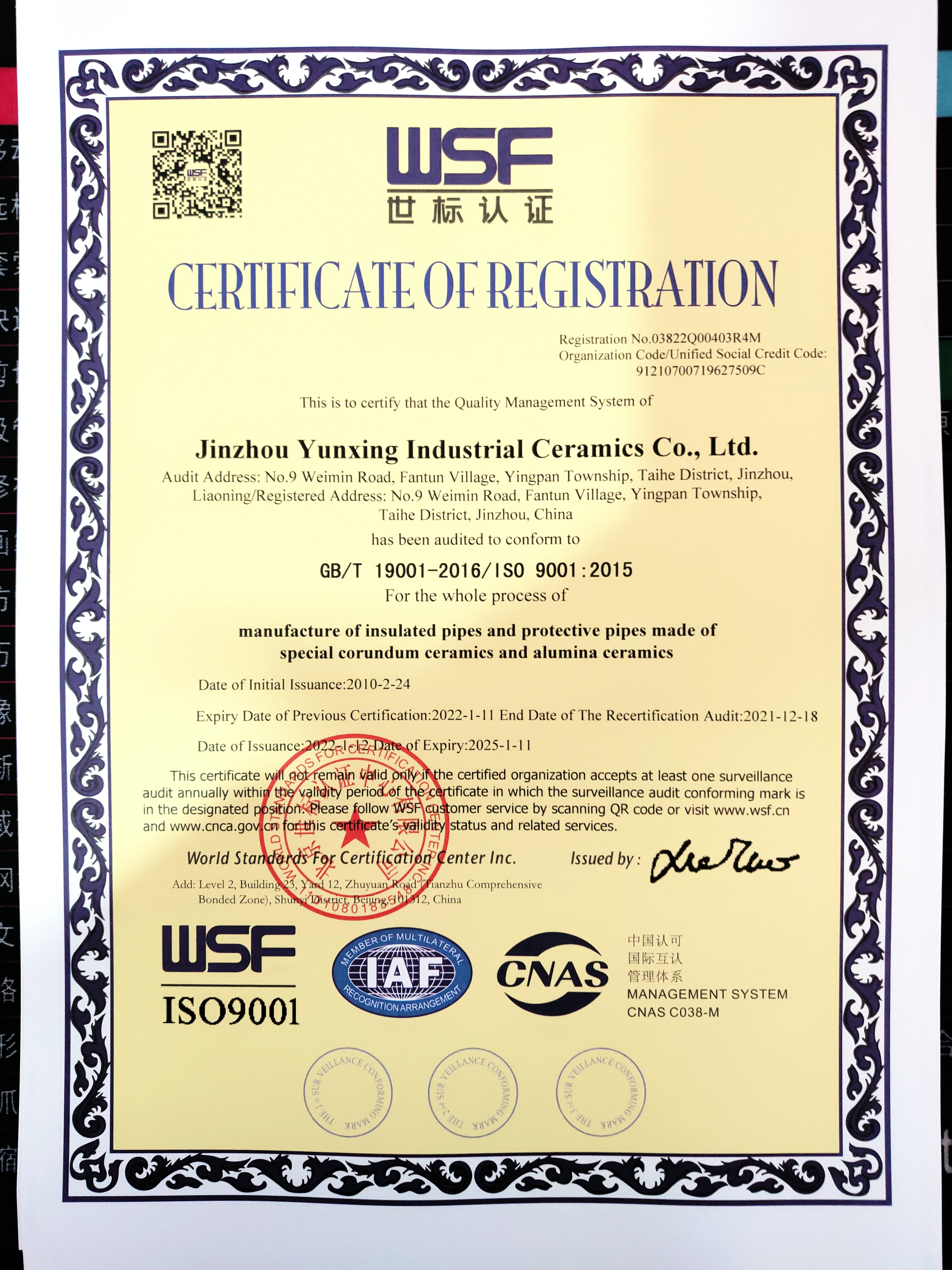

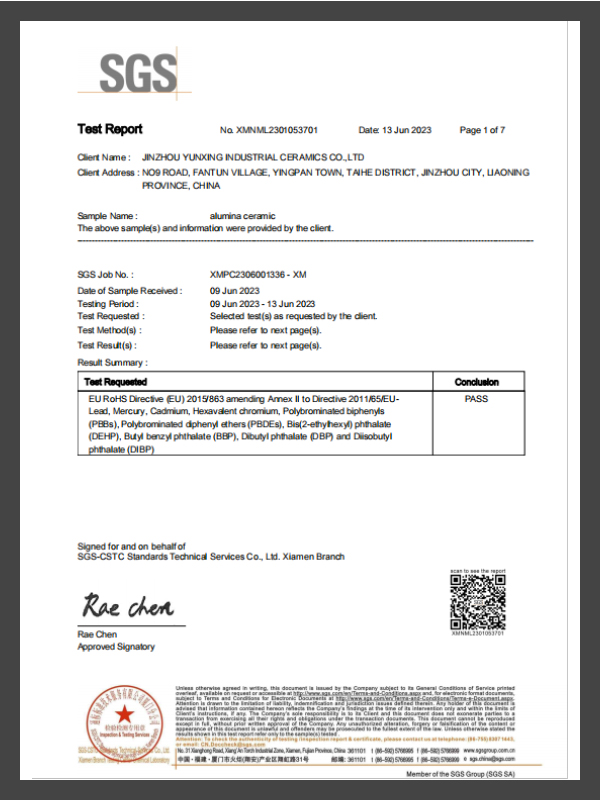

Certificates
