Alumina Industrial Ceramic Tube

  • YUNXING
  • China Jinzhou
  • 5-30 Days
  • 5,000-10,000/month(Looking for distributors)
1.Alumina industrial ceramic tube have excellent wear resistance and long service life. 2.Alumina industrial ceramic tube have a smooth surface and low friction coefficient. 3.Alumina industrial ceramic tube have low volume density and light weight. 4.Alumina industrial ceramic tube can resist corrosion from various acids, alkalis, and salts, with a hardness second only to diamonds. 5.The thermal expansion coefficient and thermal conductivity of alumina industrial ceramic tube are low, and the working temperature can reach 1700 ℃.

Alumina Industrial Ceramic Tube

 My factory looking for distributors.





Advantages of alumina industrial ceramic tube

1.Alumina industrial ceramic tube have excellent wear resistance and long service life.

2.Alumina industrial ceramic tube have a smooth surface and low friction coefficient.

3.Alumina industrial ceramic tube have low volume density and light weight.

4.Alumina industrial ceramic tube can resist corrosion from various acids, alkalis, and salts, with a hardness second only to diamonds.

5.The thermal expansion coefficient and thermal conductivity of alumina industrial ceramic tube are low, and the working temperature can reach 1700 ℃.


Applications of alumina industrial ceramic tube

Alumina industrial ceramic tubes are commonly used in traditional industrial ovens and furnaces.

Alumina industrial ceramic tubes are used as insulators for electrical connections.

Alumina industrial ceramic tubes are used as heat-resistant supports, sample racks, and drums in kilns.

Alumina industrial ceramic tubes are used as spray tubes and gas nozzles.

Alumina industrial ceramic tubes are used as protective tubes and ceramic insulators for thermocouples.


Alumina


Alumina Tube(open both ends)(slip casting)  Specification Table:

Number

 SPEC: OD x IDLENG TH MMNumberSPEC: OD x IDLENG TH MM
INCHMM INCHMM
10.197x0.1185x3≤800321.126x0.88628.6x22.5≤1800
20.236x0.1576x4≤1300331.181x0.82730x21
30.250x0.1256.4x3.2341.181x0.90630x23
40.250x0.1576.4x4351.260x0.98432x25
50.250x0.1886.4x4.8361.375x1.12534.9x28.6
60.276x0.1577x4371.378x1.06335x27
70.276x0.1977x5381.496x1.18138x30
80.315x0.1978x5391.575x1.18140x30
90.354x0.2369x6≤1600401.654x1.33942x34
100.375x0.2509.6x6.4411.750x1.50044.5x38.1
110.394x0.23610x6421.811x1.49646x38
120.394x0.27610x7431.875x1.62547.6x41.3
130.433x0.27611x7441.969x1.57550x40
140.472x0.23612x6452.000x1.75050.8x44.5
150.472x0.31512x8462.250x2.00057.2x50.8
160.472x0.35512x9472.283x1.89058x48
170.500x0.25012.7x6.4482.362x1.9660x50
180.500x0.37512.7x9.5492.500x2.25063.5x57.2
190.551x0.39414x10502.559x2.16565x55
200.591x0.39415x10≤1800512.750x2.50069.9x63.5
210.630x0.47216x12522.756x2.36270x60
220.669x0.47217x12532.956x2.56175x65
230.688x0.43717.5x11.1543.000x2.75076x70
240.750x0.51219.1x13553.150x2.67580x68
250.787x0.59120x15563.500x3.12588.9x79.4≤1600
260.866x0.63022x16573.543x3.15090x80
270.866x0.66922x17583.937x3.543100x90
280.945x0.70924x18594.000x3.650101.6x93
291.000x0.75025.4x19.1604.331x3.937110x100≤1500
301.063x0.66927x17614.500x4.125114.3x105
311.063x0.78727x20624.724x4.331120x110


 Insulation tube (extrusion)  Specification Table

            Number               1 Bore tube SPEC: OD x ID         Length MM
                    INCH               MM
1
0.031x0.0110.8x0.3










≤18500

20.039x0.0191x0.5
30.059x0.0241.5x0.6
4
0.079x0.039
2x1
5
0.100x0.0502.5x1.3
60.118x0.0593x1.5
70.118x0.0793x2
80.125x0.0633.2x1.6
90.157x0.0794x2
10
0.197x0.1185x3
110.236x0.1186x3
120.236x0.1576x4
13
0.250x0.1256.4x3.2
140.250x0.1576.4x4
150.250x0.1886.4x4.8
160.276x0.1977x5
17
0.315x0.1978x5
180.354x0.2369x6
19
0.374x0.2509.5x6.35
200.394x0.23610x6
21
0.433x0.27611x7
220.472x0.31512x8


Alumina ceramic performance index   (Notice of Correct in Leakeage Rate)

NO.

Property

Unit

Alumina

1

Al2O3

%

>99.3

2

SiO2

%

3

Density

g/cm3

3.88

4

Water absorption

%

0.01

5

Compressive strength

MPa

2300

6

20℃ leakage rates

Torr・L/sec

>10-11=1.33322×10-12Pa・m3/sec

7

Twisting in high temperature

mm

0.2 allowed in 1600℃

8

Bonding in high temperature


not bonded in 1600℃

9

20—1000℃ coefficient of thermal expansion

mm.10-6/℃.m

8.2

10

Thermal conductivity

W/m.k

25

11

Electric insulation strength

KV/mm

20

12

20℃direct current

insulation resistance

Ohm/cm

1014

13

High-temperature

insulation resistance

1000℃ MΩ

≥0.08

1300℃ MΩ

≥0.02

14

Thermal shock resistance


4 times not cracked in 1550℃

15

Maximum working temperature

1800

16

Hardness

Mohs

9

17

Flexural strength

Mpa

350



Our factory

Jinzhou Yunxing Industrial Ceramics Co., Ltd. was established in 2000, mainly producing various types of tubular ceramic products and various industrial parts with alumina content above 99.3%. The factory covers an area of 4000 square meters.
The company's main products are: alumina ceramic tubes, alumina ceramic crucibles, alumina ceramic rods, alumina ceramic boats, alumina ceramic plates, alumina ceramic parts, etc.
The company currently has 3 1800 ° C high-temperature furnaces and 2 1400 ° C low-temperature kilns independently designed and manufactured. The molding process is mainly based on grouting molding, and has other molding process equipment such as extrusion and hot die casting.
The company has 105 employees, including one senior ceramic engineer, three engineers, six overseas sales staff, and four professional after-sales staff.


Alumina Industrial Ceramic Tube



FAQ

Q1. What is the difference between ceramic and alumina?

A1:  Ceramics are non-metallic, inorganic materials that are typically composed of a combination of metallic and non-metallic elements. Alumina is a type of ceramic oxide, specifically an oxide of aluminum. It is widely used in various applications due to its excellent mechanical, thermal, and electrical properties.


Q2. What is alumina ceramic used for?

A2: Because of their excellent chemical stability, alumina ceramics are used widely in acid-resistant pump impellers, pump bodies, acid-carrying pipe linings and valves. Aluminum oxide ceramics are used in the manufacture of textile wear parts and knives. This is due to their extreme hardness and wear resistance.


Q3.Is alumina ceramic hard?

A3: Alumina is a very hard ceramic that is excellent at resisting abrasion and is ideal for wear-resistant inserts or products.


Q4. Incoterm: FOB, CFR, CIF;


Q5. Delivery Cost: It is determinated by the destination port;


Q6. Payment Term: PayPal; T/T;


Q7. Shipment: by sea, by air, by courier, by post, etc.

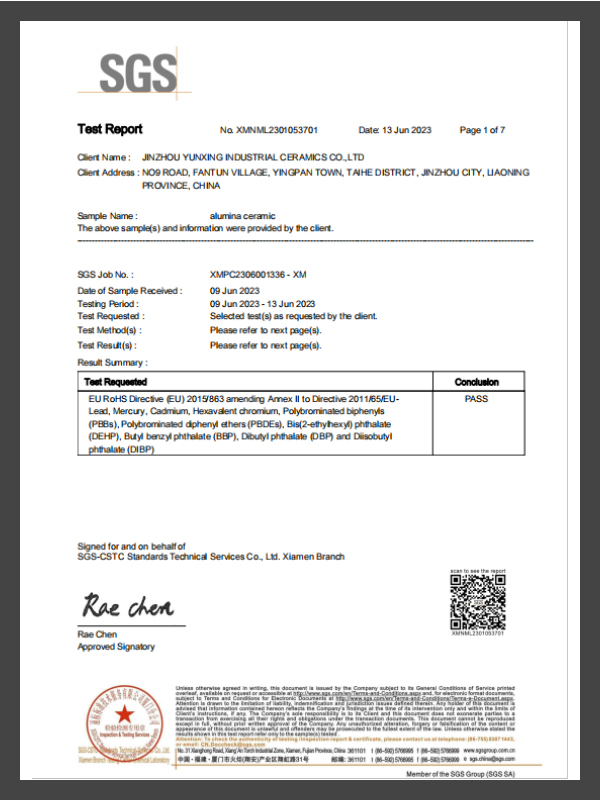

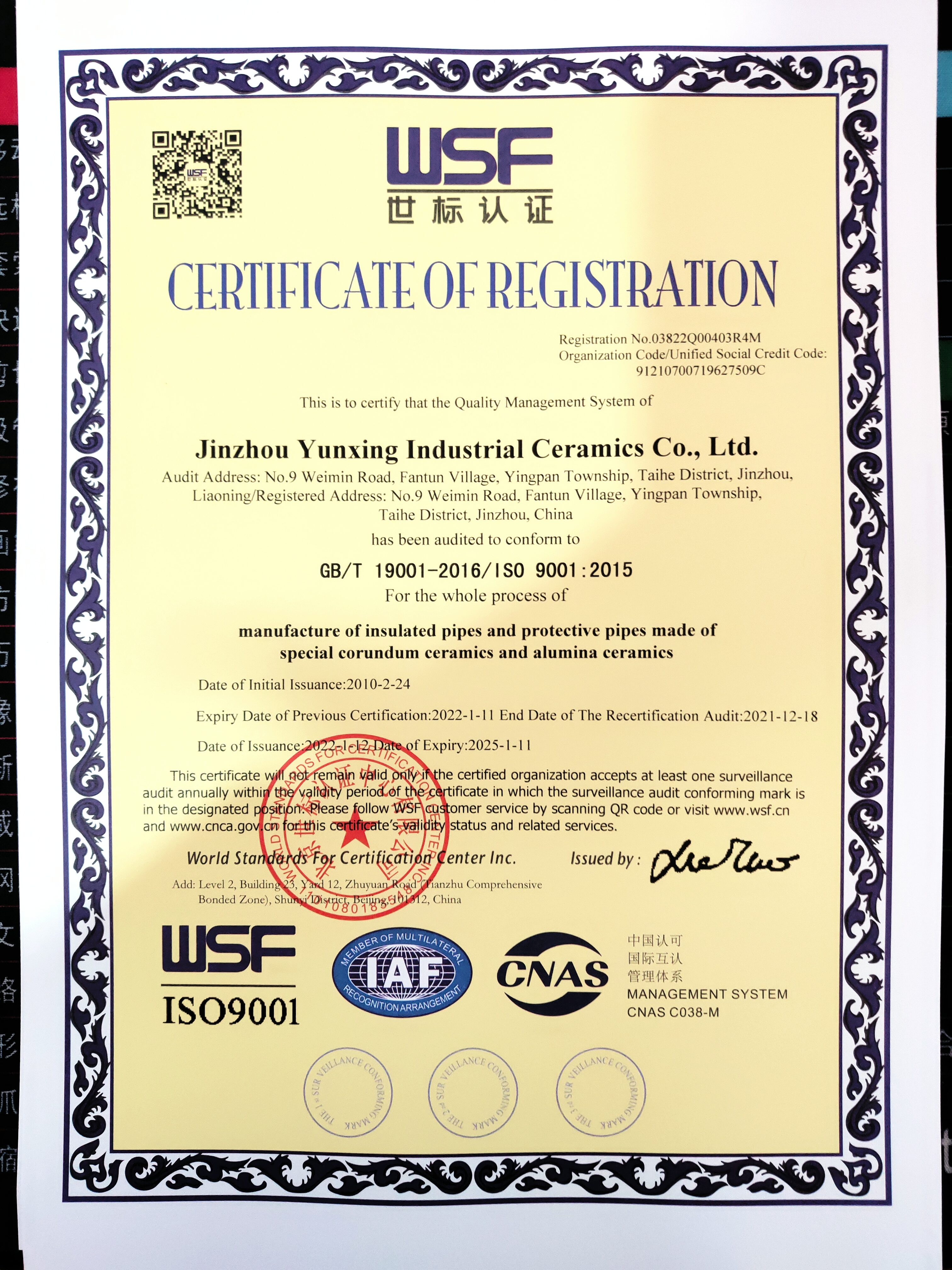

Certificates

Ceramic Tube Alumina



Feedback

1. If you have any questions or questions, please contact us and we will communicate with you as soon as possible.

2. For any other satisfaction, please also feedback to us to make our service better and better.


Alumina Industrial Ceramic Tube
