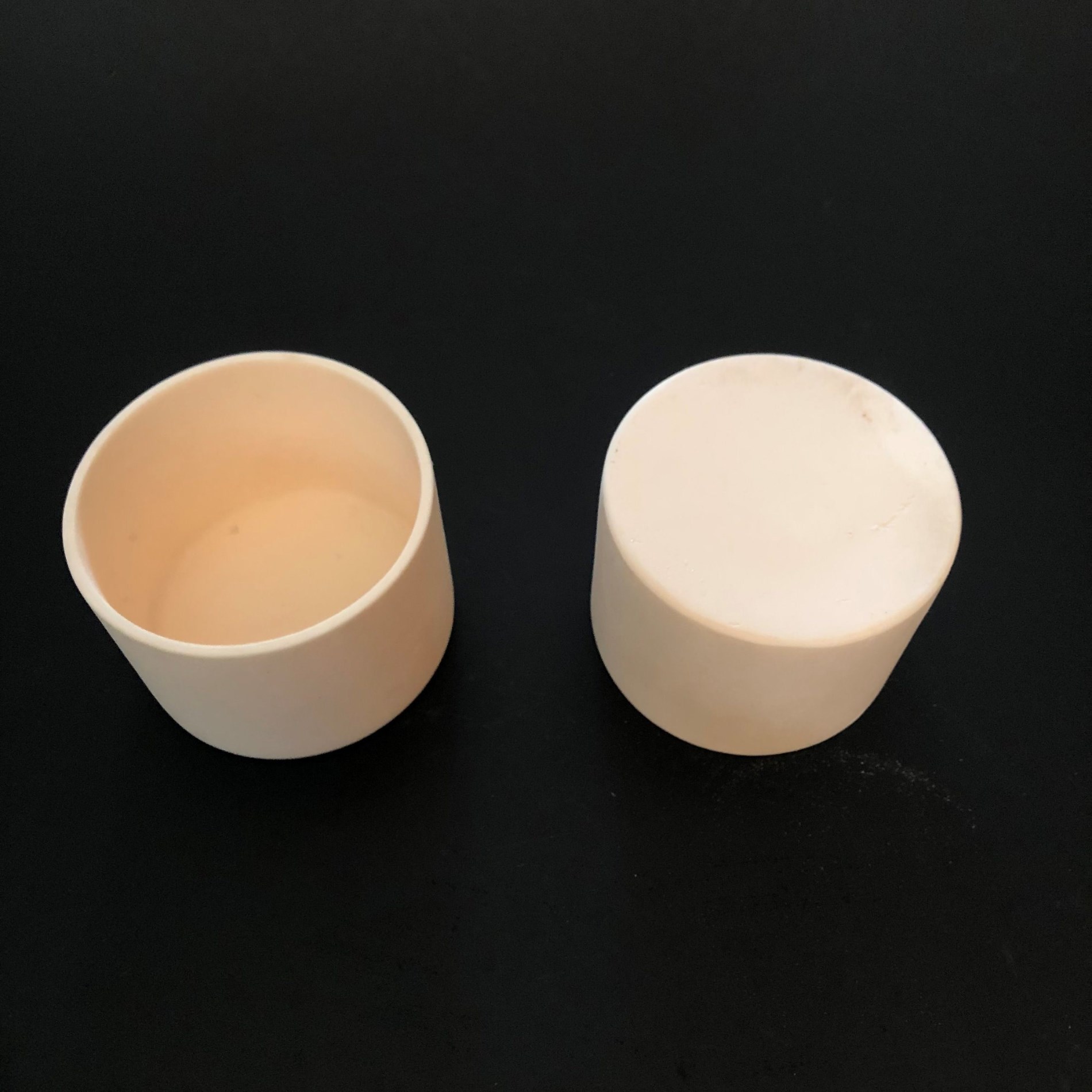

Alumina Ceramic Crucible For Glass Melting Experiment
  • Yunxing
  • China Jinzhou
  • 5-30 Days
  • 3,000-5,000/month(Looking for distributors)

1. Alumina ceramic crucible easy to clean and keep clean.Easy to clean after dyeing.
2. Alumina ceramic crucible porcelain hole is very few, water absorption rate is very low.The solution is stored in sealed ceramic crucible to prevent the evaporation, penetration and invasion of foreign bacteria.
3. Alumina ceramic crucible stable chemical properties, durable.This point is better than copper, iron, aluminum and other metal products.
4. Alimina ceramic crucible has a certain acid, alkali, salt and atmospheric carbonate gas erosion ability, not easy to react with these substances, not easy to rust aging.
5. good thermal stability, slow heat transfer.Alumina ceramic crucible has a certain temperature change under the rapid cooling and rapid heat is not easy to crack performance, better than glass, is a bad conductor of heat, heat conduction is slow, used for holding boiling water or hot solution, it is not easy to hot hands.

Alumina Ceramic Crucible For Glass Melting Experiment

My factory looking for distributors.






Advantages of alumina ceramic crucible for glass melting experiment

1. Alumina ceramic crucible easy to clean and keep clean.Easy to clean after dyeing.

2. Alumina ceramic crucible porcelain hole is very few, water absorption rate is very low.The solution is stored in sealed ceramic crucible to prevent the evaporation, penetration and invasion of foreign bacteria.

3. Alumina ceramic crucible stable chemical properties, durable.This point is better than copper, iron, aluminum and other metal products.

4. Alimina ceramic crucible has a certain acid, alkali, salt and atmospheric carbonate gas erosion ability, not easy to react with these substances, not easy to rust aging.

5. good thermal stability, slow heat transfer.Alumina ceramic crucible has a certain temperature change under the rapid cooling and rapid heat is not easy to crack performance, better than glass, is a bad conductor of heat, heat conduction is slow, used for holding boiling water or hot solution, it is not easy to hot hands.



Applications of alumina ceramic crucible for glass melting experiment

1. Alumina ceramic crucibles are used for high-temperature melting and casting.

2. Alumina ceramic crucibles are used for chemical synthesis and reaction vessels.

3. Alumina ceramic crucible are used for thermal analysis and calorimetry.

4. Alumina ceramic crucible are used for powder calcination and sintering.

5. Alumina ceramic crucible are used for metal alloying and sample preparation.

6. Alumina ceramic crucible are used for catalyst preparation and testing.



Alumina Ceramic Crucible



We only make high purity alumina ceramics

1. High-purity alumina content 99.3% -99.5%, other alumina ceramics 92% -99%.

2. The color of high purity alumina product is milky white, and other products are pink or white. The higher the purity, the more transparent the color.

3. Alumina is a refractory material, the higher the purity, the better the refractory effect

4. After high-purity alumina ceramics are fired and cooled in a 1800-degree high-temperature kiln, the products are not easy to break when they encounter high temperatures. Other ceramics are fired at 1500 ℃ ~ 1800 ℃.

5. The volume density of high-purity alumina> 3.92 g / cm3 has a smooth surface and is not easily corroded by chemicals. The bulk density of other ceramics is> 3.70 g / cm3 ~> 3.85 g / cm3.

6. High purity alumina has good hardness and good wear resistance.

7. High purity alumina products have a longer service life.



Alumina crucible (cylindrical)

Item NO.

SPEC: OD x OD x H

Volume

(mm)

Shape

Note

054#

9.4 x 8 x 15

0.7

cylinder



051#

14 x 9 x 50

3

cylinder



073#

25 x 20 x 25

7

cylinder



055#

36 x 25 x 59

26

cylinder



062#

35 x 30 x 132

90

cylinder



152#

50 x 46 x 60

90

cylinder



074#

60 x 55 x 60

130

cylinder



063#

40 x 35 x 154

140

cylinder



234#

110 x 102 x 140

1000

cylinder



235#

115 x 105 x 145

1200

cylinder



150#

115 x 98 x 181

1280

cylinder



236#

120 x 110 x 140

1280

cylinder



237#

125 x 115 x 145

1400

cylinder



225#

127 x 121 x 228

2500

cylinder



215#

171.5 x 158.8 x 152.4

3000

cylinder



293#

24 x 20 x 23

7

cylinder



294#

31 x 29 x 41

22

cylinder



301#

56 x 51 x 60

117

cylinder



306#

20 x 14-16 x 40

6.5

cylinder



307#

16 x 10-12 x 30

2.5

cylinder



308#

18 x 12-14 x 30

3.5

cylinder



309#

30 x 24-26 x 30

13

cylinder



352#

45 x 40 x 110

135

cylinder



353#

50 x 45 x 140

215

cylinder



380A#

12 x 8 x 51

2.5

cylinder



383#

215 x 189 x 175

4900

cylinder



384#

45 x 41 x 62

75

cylinder



063#

40 x 35 x 70

65

cylinder





41 x 35 x 41

40

cylinder



392#

70 x 60 x 12

20

cylinder



395#

62 x 58 x 74

165

cylinder



240#

138 x 128 x 106

1300

cylinder



478#

176 x 170 x 43

900

cylinder



506#

160 x 280 x Th5-5.7

4500

cylinder



486#

40 x 95

80

cylinder



520#

13 x 10 x 35

2.5

cylinder



527#

9.5 x 6 x 30

1

cylinder



532#

13 x 11 x 75

6

cylinder



544#

44 x 40 x 72

80

cylinder



552#

13 x 10.46 x 25

2

cylinder



559#

284 x 275 x 101.6

6000

cylinder



560#

186.94 x 177.8 x 152.4

3700

cylinder



561#

155 x 200 x Th8

3000

cylinder



568#

12x 25.4

0.8

cylinder



573#

36.5 x 34.5 x 69.85

40

cylinder



594#

65 x 83 x Th3.5

190

cylinder



593#

47 x 53 x Th3

55

cylinder



611#

48 x 41 x 90

120

cylinder



612#

5.89 x 4.89 x 12.8

0.2

cylinder



625#

18 x 15 x 60

6

cylinder



627#

12 x 9 x 50

2

cylinder



629#

24 x 21 x 20

5

cylinder



631#

19 x 17 x 26

3.8

cylinder



637#

90 x 90

430

cylinder



638#

80 x 80

280

cylinder



639#

100 x 80

460

cylinder



648#

16 x 40

3

cylinder



670#

22 x 33

10

cylinder



671#

45 x 38

50

cylinder



672#

72 x 148

500

cylinder



696#

38 x 34 x 7

5

cylinder



699#

85 x 60 x Th2-3

255

cylinder



701#

23.3 x 102

30

cylinder



708#

200 x 187.5 x 254

6100

cylinder



712#

24 x 20.8 x 50.8

20

cylinder



715#

42.5/38 x 35 x 50/1.5

50

cylinder



717#

150 x 215

3200

cylinder



719#

28 x 23 x 24

10

cylinder



726#

90 x 120 xTh3-4

570

cylinder



745#

6.5 x 5 x 12

0.2

cylinder



753#

160 x 140 x 140

1465

cylinder



770#

13 x 10 x 17

2

cylinder



771#

80 x 74 x 50

185

cylinder



772#

20 x 16 x 30

5

cylinder



774#

84 x 78 x 40

190

cylinder



778#

50 x 280 xTh3.25

420

cylinder



782#

152.4 x 142 x 279.4

4350

cylinder



783#

28 x 40

15

cylinder





35 x 28.5 x 50

30

cylinder



307B#

16 x 12 x 25

2.5

cylinder



807#

72 x 60 x 80

215

cylinder



813#

105 x 255

1515

cylinder



817#

6 x 4 x 6

0.13

cylinder



818#

7 x 5 x 8

0.2

cylinder



823#

22 x 18 x 85

25

cylinder



858#

72 x 55 x 200

450

cylinder



860#

24 x 20 x 30

5

cylinder



870#

74 x 70 x 16

50

cylinder



873#

8 x 5 x 25.5

0.5

cylinder



892#

134.62 x 124 x 117.6

1150

cylinder



895#

68 x 64 x 13

50

cylinder



896#

51 x 47 x 20

30

cylinder



905#

120 x 113 x 143

1240

cylinder



922#

3.95 x 2.95 x 15

0.1

cylinder



928#

43 x 35 x 26

20

cylinder



953#

85 x 78 x 143 x Th4

570

cylinder



958#

190 x 180 x 124

2870

cylinder



996#

88.9 x 78.74 x 157.48

700

cylinder



A05#

40 x 40 x Th2.5

36

cylinder



A11#

37 x 31 x 85

62

cylinder



A37#

100 x 100 x Th4-5

600

cylinder



A38#

30 x 60

25

cylinder



A53#

80/74 x 65 x 158/8

360

cylinder



A61#

10.92 x 8.38 x 2.29/1.78

0.1

cylinder



A64#

60 x 100

250

cylinder



A70#

130 x 130

1400

cylinder



A71#

152 x 120

1700

cylinder



A74#

30 x 22 x 130

50

cylinder



A80#

16 x 8

0.9

cylinder



A81#

76 x 70 x Th3

260

cylinder



A82#

103 x 145 x Th3.5

1000

cylinder



A83#

97.5 x 87.5 x 173

1020

cylinder



A84#

131.3 x 121.3 x 173

1850

cylinder



A90#

180 x 152 x Th4.5-5

3700

cylinder



A72#

120 x 120 x Th4-4.5

1080

cylinder



A96#

14 x 11 x 25

2

cylinder



A98#

20 x 16 x 25

4

cylinder



B16#

14 x 12 x 10

1

cylinder



B28#

8 x 7 x 6

0.2

cylinder



B29#

90 x 80 x 115

550

cylinder



B30#

12.7 x 9.525 x 12.7/3.175

7

cylinder



B57#

25.15 x 15.24 x 25.4/2.54



cylinder




Alumina ceramic performance index  (Notice of Correct in Leakeage Rate)

NO.

Property

Unit

Alumina

1

Al2O3

%

>99.3

2

SiO2

%

3

Density

g/cm3

3.88

4

Water absorption

%

0.01

5

Compressive strength

MPa

2300

6

20℃ leakage rates

TorrL/sec

>10-11=1.33322×10-12Pam3/sec

7

Twisting in high temperature

mm

0.2 allowed in 1600℃

8

Bonding in high temperature


not bonded in 1600℃

9

20—1000℃ coefficient of thermal expansion

mm.10-6/℃.m

8.2

10

Thermal conductivity

W/m.k

25

11

Electric insulation strength

KV/mm

20

12

20℃direct current

insulation resistance

Ohm/cm

1014

13

High-temperature

insulation resistance

1000℃ MΩ

≥0.08

1300℃ MΩ

≥0.02

14

Thermal shock resistance


4 times not cracked in 1550℃

15

Maximum working temperature

1800

16

Hardness

Mohs

9

17

Flexural strength

Mpa

350



Our factory

Jinzhou Yunxing Industrial Ceramics Co., Ltd. was established in 2000, mainly producing various types of tubular ceramic products and various industrial parts with alumina content above 99.3%. The factory covers an area of 4000 square meters.

The company's main products are: alumina ceramic tubes, alumina ceramic crucibles, alumina ceramic rods, alumina ceramic boats, alumina ceramic plates, alumina ceramic parts, etc.

The company currently has 3 1800 ° C high-temperature furnaces and 2 1400 ° C low-temperature kilns independently designed and manufactured. The molding process is mainly based on grouting molding, and has other molding process equipment such as extrusion and hot die casting.
The company has 105 employees, including one senior ceramic engineer, three engineers, six overseas sales staff, and four professional after-sales staff.

Alumina Ceramic



FAQ

Q1. Why alumina crucible is used?

A1. Used as a material for industrial furnaces due to its ability to maintain its hardness at high temperatures. Used as a protector for high-temperature thermal couples. Used as a material for the chemical industry due to its high corrosion resistance.


Q2. What kind of crucible for glass?

A2. Alumina crucibles are inert in hydrogen and carbonaceous atmospheres and offers high resistance to alkalies and other fluxes. Suitable for glass melting, including borosilicate glass.


Q3. What is the difference between alumina and zirconia crucible?

A3. Alumina ceramic could withstand higher temperature, application in industry furnace. 2.As the wear resistance for zirconia is much better, it is frequently used as mortar and pestles, grinding jars.
