Alumina Ceramic Ring Slice Parts Factory

Brand: Yunxing
Product origin: China
Delivery time: Depending on product size and quantity
Supply capacity: 5,000-10,000/month(Looking for distributors)

1. Alumina Ceramic Ring Slice Parts have high hardness. 2. High temperature resistance and corrosion resistance. 3. Good insulation performance. 4. Accept customized sizes. 5. Large stock and fast delivery.

Email Annex

Alumina Ceramic Ring Slice Parts Factory

Alumina Ceramic Ring Slice Parts Advantage

Processing of alumina ceramic parts, mainly composed of 99.3% alumina, used in semiconductor/optoelectronic manufacturing equipment components. Alumina ceramic parts have the characteristics of good structural strength, high temperature resistance, high pressure resistance, good accuracy, good parallelism, precise and uniform microstructure, and high strength.

We have a team of experts who accept customized production of alumina ceramic parts.

Alumina Ceramic Ring Slice Parts Application

1. Alumina ceramic parts can be used to produce electronic components such as high-voltage electrical insulation materials, RF capacitors, thermistors, and varistors.

2. Alumina ceramic parts can be used to produce mechanical parts in high temperature, high pressure, high speed, and corrosive environments.

3. Alumina ceramic parts can be used in fields such as chemical reactors, catalyst supports, and oxide preparation.

4. Alumina ceramic parts can also be used in the production of laser windows, heat treatment equipment, grinding materials, and other fields.

Performance Table of Alumina Ceramics Ring Slice Parts

Alumina ceramic performance index (Notice of Correct in Leakeage Rate）

NO.	Property	Unit	Alumina
1	Al2O3	%	>99.3
2	SiO2	%	—
3	Density	g/cm3	3.88
4	Water absorption	%	0.01
5	Compressive strength	MPa	2300
6	20℃ leakage rates	Torr・L/sec	>10-11=1.33322×10-12Pa・m3/sec
7	Twisting in high temperature	mm	0.2 allowed in 1600℃
8	Bonding in high temperature		not bonded in 1600℃
9	20—1000℃ coefficient of thermal expansion	mm.10-6／℃.m	8.2
10	Thermal conductivity	W/m.k	25
11	Electric insulation strength	KV/mm	20
12	20℃direct current insulation resistance	Ohm/cm	1014
13	High-temperature insulation resistance	1000℃ MΩ	≥0.08
13	High-temperature insulation resistance	1300℃ MΩ	≥0.02
14	Thermal shock resistance		4 times not cracked in 1550℃
15	Maximum working temperature	℃	1800
16	Hardness	Mohs	9
17	Flexural strength	Mpa	350

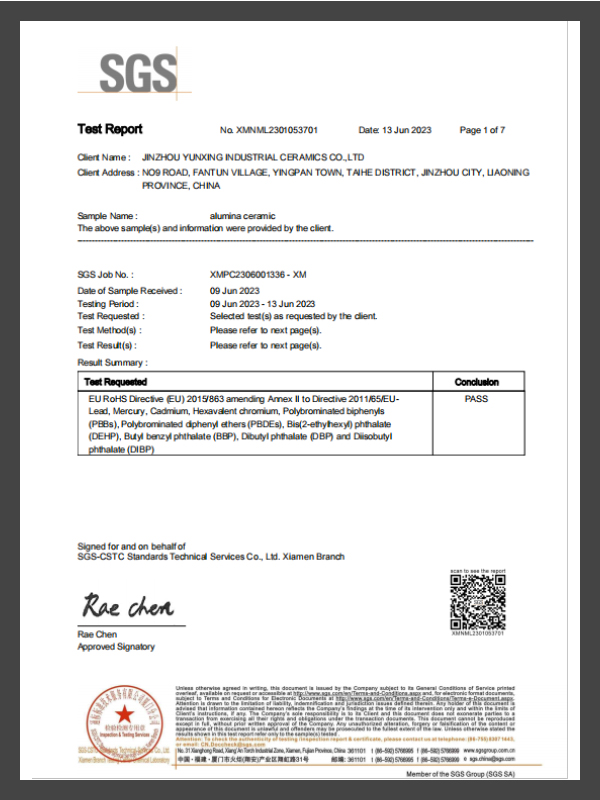

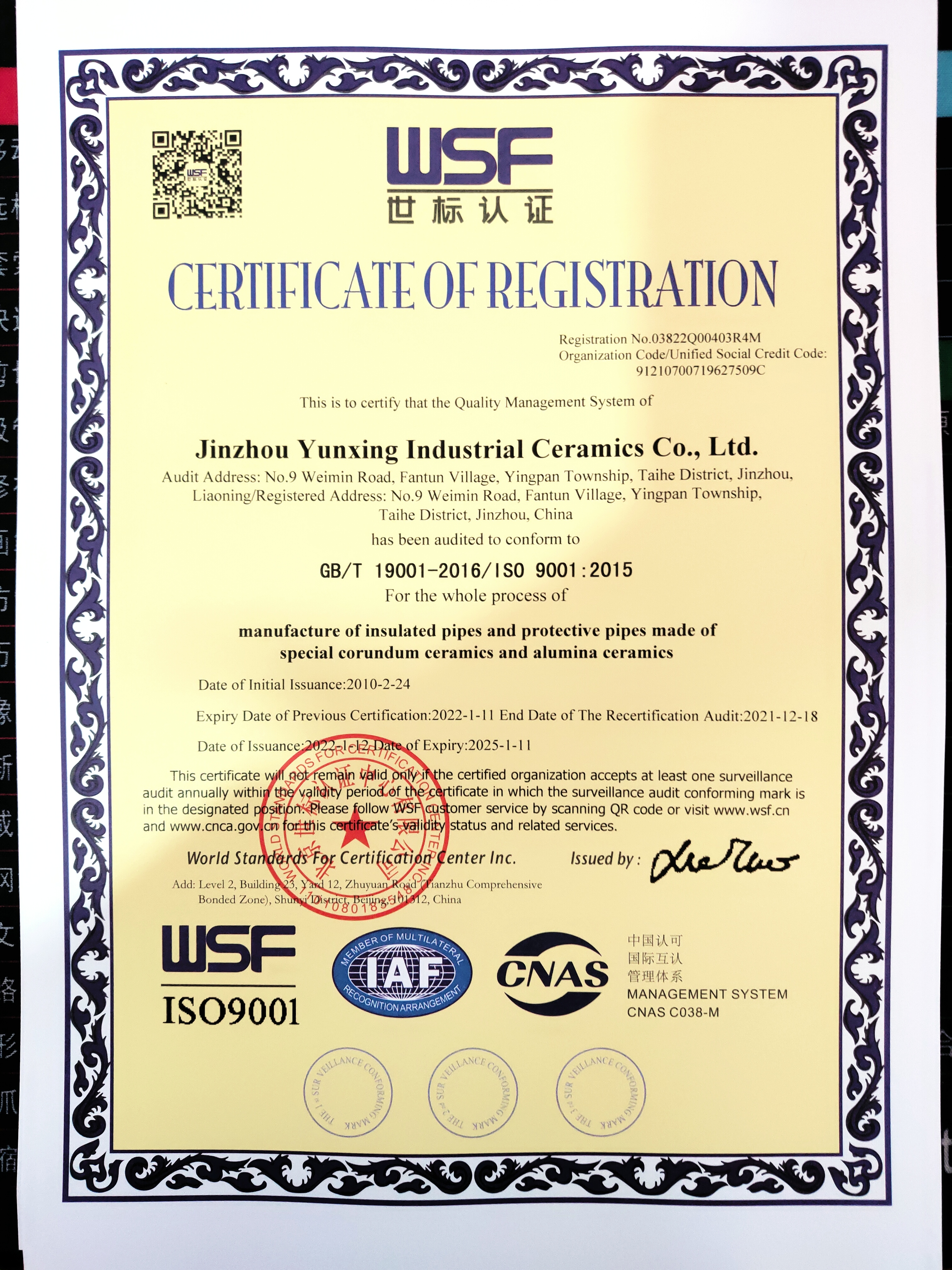

Quality Inspection Certification

Alumina Ceramic Parts

Workshop

Jinzhou Yunxing Industrial Ceramics Co., Ltd. was established in 2000,Factories are ISO9001 certified, Alumina ceramic products are SGS, DIN43725, 40680 certified.

The company's main products are: alumina ceramic tubes, alumina ceramic crucibles, alumina ceramic rods, alumina ceramic boats, alumina ceramic plates, alumina ceramic parts, etc.

Our products are widely used in Semiconductor, Medical, Aerospace, Scientific Research, Fluid Controlling, Food Processing, Automotive, Defense, Thermal Processing, Electronic and Electrical, Mineral Processing,Textile, Pulp and Paper, Glass Processing, Mechanical Engineering, etc.

Alumina Ceramic Parts

Shipment

Transportation methods: International express door-to-door service (small-volume goods), sea transportation ( large-volume goods), and railway transportation.

For goods requiring customs declaration, we will prepare complete customs declaration documents in advance to help customers clear customs quickly.

If you have special requirements for packaging, you can communicate with us in advance.

Alumina Ceramic

FAQ

Q1: What is your ceramic parts minimum order quantity (MOQ)?

A1: Our minimum order quantity (MOQ) depends on many factors such as product, shape, dimensions, etc.

Q2: Do you provide free samples?

A2: Yes, we are pleased to provide a free sample for your initial evaluation of our materials if we have the sample in stock and if its cost is bearable to us.

Q3: Do you accept a trial order before a bulk purchase?

A3: Yes, we welcome your trial order to verify our quality before your bulk purchase.

Q4: What is your production time?

A4: Our production time depends on production methods, tolerances, quantity, etc. Normally, it takes 15-20 days if we have stock material, and it takes 30-40 days if we don't. Please share your specific requirements with us, and we will quote the fastest production time.

Please contact us with any questions or drawings regarding your ceramic parts.
