Alumina Insulation Tube
- Yunxing
- China Jinzhou
- 5-30 Days
- 5,000-10,000/month(Looking for distributors)
▪ Alumina insulation tube made by 99.3%-99.7% high purity alumina
▪ Alumina insulation tube max working temperature is 1700C
▪ The quality pass the SGS and DIN43724/DIN43725/DIN40680
▪ Alumina insulation tube both end open with good verticalit

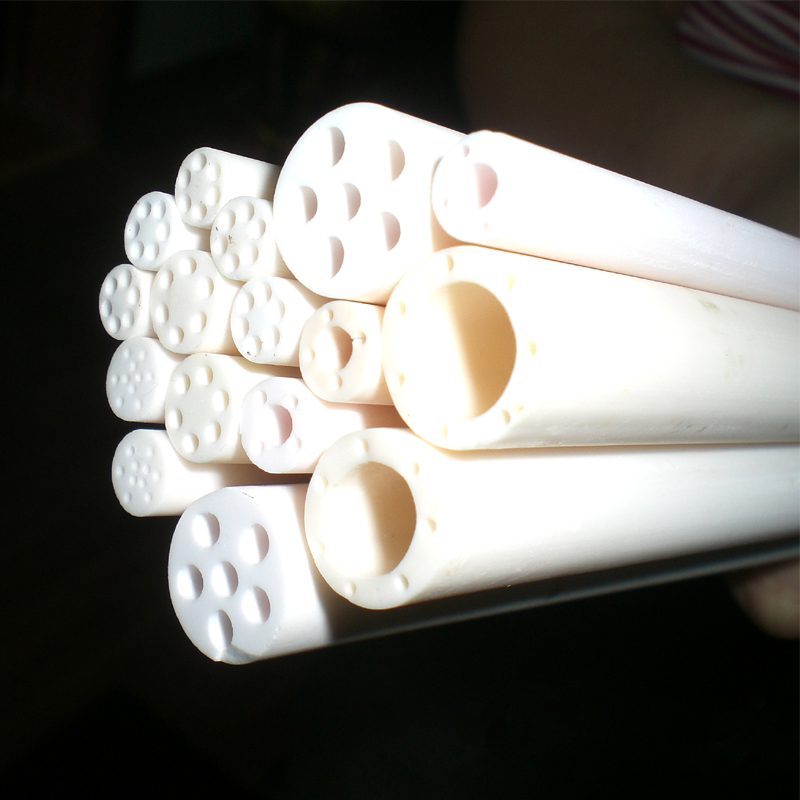

▪ Alumina insulation tube multi bores/holes can accept the custom.
Alumina Insulation Tube
My factory looking for distributors.
Advantage of Alumina Insulation Tube
Application of Alumina Insulation Tube
2.Alumina insulation tube is used for thick film integrated circuits.
Recommended products
Big diameter tube:
Used in various industrial furnaces Field, do furnace tube,
And other uses. High temperature resistance, insulation.
Ceramic cone crucible:
Fire resistance, corrosion resistance and wear resistance.
Used in metallurgy, chemical industry, papermaking and other industries.
Insulation tube (extrusion) Specification Table
序号 Number | 双孔绝缘管规格：外径 x 内径 2 Bore tube SPEC: OD x ID | 长度 LENGTH MM | |
英寸 INCH | 毫米 MM | ||
1 | 0.031x0.005 | 0.79x0.13 |
≤18500 |
2 | 0.039x0.008 | 1x0.2 | |
3 | 0.047x0.010 | 1.19x0.25 | |
4 | 0.062x0.016 | 1.57x0.41 | |
5 | 0.063x0.012 | 1.6x0.3 | |
6 | 0.079x0.020 | 2x0.5 | |
7 | 0.094x0.025 | 2.39x0.64 | |
8 | 0.118x0.028 | 3x0.7 | |
9 | 0.125x0.031 | 3.18x0.79 | |
10 | 0.125x0.040 | 3.18x1.02 | |
11 | 0.156x0.040 | 3.96x1.02 | |
12 | 0.158x0.039 | 4x1 | |
13 | 0.187x0.040 | 4.75x1.02 | |
14 | 0.187x0.062 | 4.75x1.57 | |
15 | 0.197x0.047 | 5x1.2 | |
16 | 0.236x0.059 | 6x1.5 | |
17 | 0.250x0.062 | 6.35x1.57 | |
18 | 0.250x0.078 | 6.35x1.98 | |
19 | 0.315x0.079 | 8x2 | |
20 | 0.375x0.062 | 9.53x1.58 | |
21 | 0.394x0.138 | 10x3.5 | |
22 | 0.473x0.158 | 12x4 | |
Insulation tube (extrusion) Specification Table
序号 Number | 四孔绝缘管规格：外径 x 内径 4 Bore tube SPEC: OD x ID | 长度 LENGTH MM | |
英寸 INCH | 毫米 MM | ||
1 | 0.031x0.005 | 0.79x0.13 |
≤18500 |
2 | 0.039x0.010 | 1x0.25 | |
3 | 0.047x0.010 | 1.19x0.25 | |
4 | 0.059x0.016 | 1.5x0.4 | |
5 | 0.063x0.016 | 1.59x0.41 | |
6 | 0.063x0.014 | 1.6x0.35 | |
7 | 0.094x0.020 | 2.39x0.51 | |
8 | 0.100x0.020 | 2.5x0.5 | |
9 | 0.118x0.020 | 3x0.5 | |
10 | 0.125x0.020 | 3.18x0.51 | |
11 | 0.156x0.031 | 3.96x0.79 | |
12 | 0.158x0.032 | 4x0.8 | |
13 | 0.187x0.031 | 4.75x0.79 | |
14 | 0.187x0.047 | 4.75x1.19 | |
15 | 0.197x0.047 | 5x1.2 | |
16 | 0.218x0.050 | 5.54x1.27 | |
17 | 0.236x0.059 | 6x1.5 | |
18 | 0.250x0.062 | 6.35x1.57 | |
19 | 0.313x0.062 | 7.95x1.57 | |
20 | 0.315x0.097 | 8x2 | |
21 | 0.394x0.079 | 10x2 | |
22 | 0.473x0.138 | 12x3.5 | |
Alumina ceramic performance index (Notice of Correct in Leakeage Rate）
NO. | Property | Unit | Alumina |
1 | Al2O3 | % | >99.3 |
2 | SiO2 | % | — |
3 | Density | g/cm3 | 3.88 |
4 | Water absorption | % | 0.01 |
5 | Compressive strength | MPa | 2300 |
6 | 20℃ leakage rates | Torr・L/sec | >10-11=1.33322×10-12Pa・m3/sec |
7 | Twisting in high temperature | mm | 0.2 allowed in 1600℃ |
8 | Bonding in high temperature | not bonded in 1600℃ | |
9 | 20—1000℃ coefficientofthermalexpansion | mm.10-6／℃.m | 8.2 |
10 | Thermal conductivity | W/m.k | 25 |
11 | Electric insulation strength | KV/mm | 20 |
12 | 20℃direct current insulation resistance | Ohm/cm | 1014 |
13 | High-temperature insulation resistance | 1000℃ MΩ | ≥0.08 |
1300℃ MΩ | ≥0.02 | ||
14 | Thermal shock resistance | 4 times not cracked in 1550℃ | |
15 | Maximum working temperature | ℃ | 1800 |
16 | Hardness | Mohs | 9 |
17 | Flexural strength | Mpa | 350 |
Our factory
Jinzhou Yunxing Industrial Ceramics Co., Ltd. was established in 2000, mainly producing various types of tubular ceramic products and various industrial parts with alumina content above 99.3%. The factory covers an area of 4000 square meters.
The company's main products are: alumina ceramic tubes, alumina ceramic crucibles, alumina ceramic rods, alumina ceramic boats, alumina ceramic plates, alumina ceramic parts, etc.
The company currently has 3 1800 ° C high-temperature furnaces and 2 1400 ° C low-temperature kilns independently designed and manufactured. The molding process is mainly based on grouting molding, and has other molding process equipment such as extrusion and hot die casting.
The company has 105 employees, including one senior ceramic engineer, three engineers, six overseas sales staff, and four professional after-sales staff.
FAQ
1. Incoterm: FOB, CFR, CIF;
2. Payment Term: PayPal; T/T;
3. We accept customization.
4.We have professional designers.
5.We have a professional after-sales department to answer your questions.
6.Is alumina a good thermal insulator?
Alumina (Al2O3) is a widely used material for highly insulating films due to its very low electrical conductivity, even at high temperatures.
7.What is the maximum temperature for alumina tube?
Alumina products can withstand up to 1750°C (3182°F).
