1800C Alumina Ceramic Tube
- YUNXING
- China Jinzhou
- 5-30 Days
- 5,000*10,000/month(Looking for distributors)
Advantages of alumina ceramic tube:
A. It has good conductivity, mechanical strength and high temperature resistance.
B. The hardness is large, and the hardness is second only to diamond.
C. The wear resistance is very good. It can extend the service life of the equipment at least ten times.

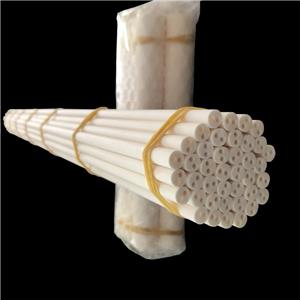

1800C Alumina Ceramic Tube
My factory looking for distributors.
Alumina ceramic tubes have a wide range of applications, involving high-temperature testing and analysis equipment in various industries, such as coal testing and analysis equipment, metallurgical powder testing and analysis equipment, and chemical and glass industry testing and analysis equipment.
Our alumina ceramic tubes are exported to more than 30 countries. The quality of our products is deeply liked by customers. Crucible products are also purchased by many university laboratories and mining laboratories. Parts products are also ordered by many large machine companies.
The thick wall thickness alumina tube always using the casting way to produce, our factory also can accept the custom size for the tube.
Product information
▪ The alumina furnace tube max diameter can get 130 mm with length 1800 mm.
▪ Custom shape like the circular tube, square tube, horseshoe tube, outer wire tube.
▪ Full of stock in warehouse
▪ Without any burrs and sharp corners
▪ Can do the ground finish with the serious tolerance processing
▪ Can provide the free sample for testing qualuty first
Recommended products
Ceramic beads
2 bores round ceramic beads used in thermocouple could satisfy the turning,gyration,warping etc measurement requirement in complex conditions.
Ceramic rods
With high density&refractoriness,good corrosion resistence,mechanical capacity etc properties,ceramic rods are widely used in chemical fiber,textile and chemical etc industries.
Alumina ceramic performance index (Notice of Correct in Leakeage Rate）
NO. | Property | Unit | Alumina |
1 | Al2O3 | % | >99.3 |
2 | SiO2 | % | — |
3 | Density | g/cm3 | 3.88 |
4 | Water absorption | % | 0.01 |
5 | Compressive strength | MPa | 2300 |
6 | 20℃ leakage rates | Torr・L/sec | >10-11=1.33322×10-12Pa・m3/sec |
7 | Twisting in high temperature | mm | 0.2 allowed in 1600℃ |
8 | Bonding in high temperature | not bonded in 1600℃ | |
9 | 20—1000℃ coefficient of thermal expansion | mm.10-6／℃.m | 8.2 |
10 | Thermal conductivity | W/m.k | 25 |
11 | Electric insulation strength | KV/mm | 20 |
12 | 20℃direct current insulation resistance | Ohm/cm | 1014 |
13 | High-temperature insulation resistance | 1000℃ MΩ | ≥0.08 |
1300℃ MΩ | ≥0.02 | ||
14 | Thermal shock resistance | 4 times not cracked in 1550℃ | |
15 | Maximum working temperature | ℃ | 1800 |
16 | Hardness | Mohs | 9 |
17 | Flexural strength | Mpa | 350 |
Our factory
Jinzhou Yunxing Industrial Ceramics Co., Ltd. was established in 2000, mainly producing various types of tubular ceramic products and various industrial parts with alumina content above 99.3%. The factory covers an area of 4000 square meters.
The company currently has 3 1800 ° C high-temperature furnaces and 2 1400 ° C low-temperature kilns independently designed and manufactured. The molding process is mainly based on grouting molding, and has other molding process equipment such as extrusion and hot die casting.
The company has 105 employees, including one senior ceramic engineer, three engineers, six overseas sales staff, and four professional after-sales staff.
FAQ
1. Monthly Capacity: 2,000-4,000 pcs;
2. Material: Alumina ceramic
3. Lead time: pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T;
7. Shipment: by sea, by air, by courier, by post, etc.
8. We accept customization.
9.We have professional designers.
10.We have a professional after-sales department to answer your questions.
RFQ
1.What is alumina ceramic used for?
Alumina is a very hard ceramic that is excellent at resisting abrasion and is ideal for wear-resistant inserts or products. It is commonly used as a high temperature electrical insulator, particularly the higher purity grades which offer better resistivity.
2.Is alumina ceramic safe to use?
Alumina ceramic, composed mainly of aluminum oxide (Al2O3), is widely regarded as safe for various applications due to its biocompatibility, thermal resistance, and electrical insulation properties. Used in medical implants and dental applications, it is well-tolerated by the body.
3.Why is alumina expensive?
It is expensive, largely because of the amount of electricity required in the extraction process. Aluminium ore is called bauxite close bauxiteA rock that can be used to make aluminium.. The bauxite is purified to produce aluminium oxide, a white powder from which aluminium can be extracted.
